phoenix_title wx.GraphicsPath

A wx.GraphicsPath is a native representation of a geometric path.

The contents are specific and private to the respective renderer. Instances are reference counted and can therefore be assigned as usual. The only way to get a valid instance is by using wx.GraphicsContext.CreatePath or wx.GraphicsRenderer.CreatePath .


class_hierarchy Class Hierarchy

Inheritance diagram for class GraphicsPath:

method_summary Methods Summary

AddArc

Adds an arc of a circle.

AddArcToPoint

Adds an arc (of a circle with radius r) that is tangent to the line connecting the current point and (x1, y1) and to the line connecting (x1, y1) and (x2, y2).

AddCircle

Appends a circle around (x,`y`) with radius r as a new closed subpath.

AddCurveToPoint

Adds a cubic Bézier curve from the current point, using two control points and an end point.

AddEllipse

Appends an ellipse fitting into the passed-in rectangle as a new closed subpath.

AddLineToPoint

Adds a straight line from the current point to (x,`y`).

AddPath

Adds another path onto the current path.

AddQuadCurveToPoint

Adds a quadratic Bézier curve from the current point, using a control point and an end point.

AddRectangle

Appends a rectangle as a new closed subpath.

AddRoundedRectangle

Appends a rounded rectangle as a new closed subpath.

CloseSubpath

Closes the current sub-path.

Contains

GetBox

Gets the bounding box enclosing all points (possibly including control points).

GetCurrentPoint

Gets the last point of the current path, (0,0) if not yet set.

GetNativePath

Returns the native path ( CGPathRef for Core Graphics, Path pointer for GDI+ and a cairo_path_t pointer for Cairo).

MoveToPoint

Begins a new subpath at (x,`y`).

Transform

Transforms each point of this path by the matrix.

UnGetNativePath

Gives back the native path returned by GetNativePath because there might be some deallocations necessary (e.g., on Cairo, the native path returned by GetNativePath is newly allocated each time).

property_summary Properties Summary

Box

See GetBox

CurrentPoint

See GetCurrentPoint

NativePath

See GetNativePath

api Class API

class wx.GraphicsPath(GraphicsObject)

A GraphicsPath is a native representation of a geometric path.


Methods

AddArc(self, *args, **kw)

Adds an arc of a circle.

The circle is defined by the coordinates of its centre (x, y) or c and its radius r. The arc goes from the starting angle startAngle to endAngle either clockwise or counter-clockwise, depending on the value of clockwise argument.

The angles are measured in radians but, contrary to the usual mathematical convention, are always clockwise from the horizontal axis.

If clockwise and arc endAngle is less than startAngle, it will be progressively increased by 2pi until it is greater than startAngle. If counter-clockwise and arc endAngle is greater than startAngle, it will be progressively decreased by 2pi until it is less than startAngle.

If there is a current point set, an initial line segment will be added to the path to connect the current point to the beginning of the arc.

overload Overloaded Implementations:


AddArc (self, x, y, r, startAngle, endAngle, clockwise)

Parameters:

  • x (wx.Double)

  • y (wx.Double)

  • r (wx.Double)

  • startAngle (wx.Double)

  • endAngle (wx.Double)

  • clockwise (bool)

Return type:

None


AddArc (self, c, r, startAngle, endAngle, clockwise)

Parameters:

  • c (wx.Point2D)

  • r (wx.Double)

  • startAngle (wx.Double)

  • endAngle (wx.Double)

  • clockwise (bool)

Return type:

None

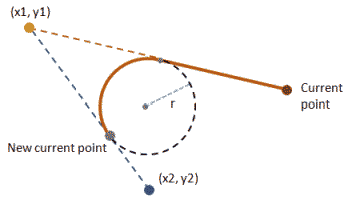

AddArcToPoint(self, x1, y1, x2, y2, r)

Adds an arc (of a circle with radius r) that is tangent to the line connecting the current point and (x1, y1) and to the line connecting (x1, y1) and (x2, y2).

If the current point and the starting point of the arc are different, then a straight line connecting these points is also appended. If there is no current point before the call to AddArcToPoint , then this function will behave as if preceded by a call to MoveToPoint(0, 0). After this call, the current point will be at the ending point of the arc.

_images/drawing-addarctopoint.png

Parameters:

  • x1 (wx.Double)

  • y1 (wx.Double)

  • x2 (wx.Double)

  • y2 (wx.Double)

  • r (wx.Double)

Return type:

None


AddCircle(self, x, y, r)

Appends a circle around (x,`y`) with radius r as a new closed subpath.

After this call, the current point will be at ( x+ r , y).

Parameters:

  • x (wx.Double)

  • y (wx.Double)

  • r (wx.Double)

Return type:

None


AddCurveToPoint(self, *args, **kw)

overload Overloaded Implementations:


AddCurveToPoint (self, cx1, cy1, cx2, cy2, x, y)

Adds a cubic Bézier curve from the current point, using two control points and an end point.

If there is no current point before the call to AddCurveToPoint , then this function will behave as if preceded by a call to MoveToPoint(cx1, cy1).

This is useful for pulling a section of a path in two directions, providing a smoother bump (or wave) in its appearance compared to a quadratic Bézier curve.

Parameters:

  • cx1 (wx.Double) – The x coordinate of the first control point.

  • cy1 (wx.Double) – The y coordinate of the first control point.

  • cx2 (wx.Double) – The x coordinate of the second control point.

  • cy2 (wx.Double) – The y coordinate of the second control point.

  • x (wx.Double) – The x coordinate of the end point.

  • y (wx.Double) – The y coordinate of the end point.

Return type:

None


AddCurveToPoint (self, c1, c2, e)

Adds a cubic Bézier curve from the current point, using two control points and an end point.

If there is no current point before the call to AddCurveToPoint , then this function will behave as if preceded by a call to MoveToPoint(c1).

This is useful for pulling a section of a path in two directions, providing a smoother bump (or wave) in its appearance compared to a quadratic Bézier curve.

Parameters:
Return type:

None



AddEllipse(self, *args, **kw)

overload Overloaded Implementations:


AddEllipse (self, x, y, w, h)

Appends an ellipse fitting into the passed-in rectangle as a new closed subpath.

After this call, the current point will be at ( x+ w , y+ h/2 ) .

Parameters:

  • x (wx.Double)

  • y (wx.Double)

  • w (wx.Double)

  • h (wx.Double)

Return type:

None


AddEllipse (self, rect)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters:

rect (wx.Rect2D)

Return type:

None

Added in version 4.3/wxWidgets-3.3.0.



AddLineToPoint(self, *args, **kw)

overload Overloaded Implementations:


AddLineToPoint (self, x, y)

Adds a straight line from the current point to (x,`y`).

If current point is not yet set before the call to AddLineToPoint , then this function will behave as MoveToPoint .

Parameters:

  • x (wx.Double)

  • y (wx.Double)

Return type:

None


AddLineToPoint (self, p)

Adds a straight line from the current point to p.

If current point is not yet set before the call to AddLineToPoint , then this function will behave as MoveToPoint .

Parameters:

p (wx.Point2D)

Return type:

None



AddPath(self, path)

Adds another path onto the current path.

After this call, the current point will be at the added path’s current point. For Direct2D, the path being appended shouldn’t contain a started non-empty subpath when this function is called.

Parameters:

path (wx.GraphicsPath)

Return type:

None


AddQuadCurveToPoint(self, *args, **kw)

overload Overloaded Implementations:


AddQuadCurveToPoint (self, cx, cy, x, y)

Adds a quadratic Bézier curve from the current point, using a control point and an end point.

If there is no current point before the call to AddQuadCurveToPoint , then this function will behave as if preceded by a call to MoveToPoint(cx, cy).

This is useful for pulling a section of a path in one direction, providing a sharper bump in its appearance compared to a cubic Bézier curve.

Parameters:

  • cx (wx.Double) – The x coordinate of the control point.

  • cy (wx.Double) – The y coordinate of the control point.

  • x (wx.Double) – The x coordinate of the end point.

  • y (wx.Double) – The y coordinate of the end point.

Return type:

None


AddQuadCurveToPoint (self, cp, e)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters:
Return type:

None

Added in version 4.3/wxWidgets-3.3.0.



AddRectangle(self, *args, **kw)

overload Overloaded Implementations:


AddRectangle (self, x, y, w, h)

Appends a rectangle as a new closed subpath.

After this call the current point will be at (x, y).

Parameters:

  • x (wx.Double)

  • y (wx.Double)

  • w (wx.Double)

  • h (wx.Double)

Return type:

None


AddRectangle (self, rect)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters:

rect (wx.Rect2D)

Return type:

None

Added in version 4.3/wxWidgets-3.3.0.



AddRoundedRectangle(self, *args, **kw)

overload Overloaded Implementations:


AddRoundedRectangle (self, x, y, w, h, radius)

Appends a rounded rectangle as a new closed subpath.

If radius equals 0, then this function will behave as AddRectangle ; otherwise, after this call, the current point will be at ( x+ w , y+ h/2 ) .

Parameters:

  • x (wx.Double)

  • y (wx.Double)

  • w (wx.Double)

  • h (wx.Double)

  • radius (wx.Double)

Return type:

None


AddRoundedRectangle (self, rect, radius)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters:
Return type:

None

Added in version 4.3/wxWidgets-3.3.0.



CloseSubpath(self)

Closes the current sub-path.

After this call, the current point will be at the joined end point of the sub-path.

Return type:

None


Contains(self, *args, **kw)
Returns:

True if the point is within the path.

overload Overloaded Implementations:


Contains (self, c, fillStyle=ODDEVEN_RULE)

Parameters:
Return type:

bool


Contains (self, x, y, fillStyle=ODDEVEN_RULE)

Parameters:
Return type:

bool



GetBox(self)

Gets the bounding box enclosing all points (possibly including control points).

Return type:

wx.Rect2D


GetCurrentPoint(self)

Gets the last point of the current path, (0,0) if not yet set.

Return type:

wx.Point2D


GetNativePath(self)

Returns the native path ( CGPathRef for Core Graphics, Path pointer for GDI+ and a cairo_path_t pointer for Cairo).

Return type:

Any


MoveToPoint(self, *args, **kw)

overload Overloaded Implementations:


MoveToPoint (self, x, y)

Begins a new subpath at (x,`y`).

Parameters:

  • x (wx.Double)

  • y (wx.Double)

Return type:

None


MoveToPoint (self, p)

Begins a new subpath at p.

Parameters:

p (wx.Point2D)

Return type:

None



Transform(self, matrix)

Transforms each point of this path by the matrix.

For Direct2D, the current path shouldn’t contain a started non-empty subpath when this function is called.

Parameters:

matrix (wx.GraphicsMatrix)

Return type:

None


UnGetNativePath(self, p)

Gives back the native path returned by GetNativePath because there might be some deallocations necessary (e.g., on Cairo, the native path returned by GetNativePath is newly allocated each time).

Parameters:

p

Return type:

None


Properties

Box

See GetBox


CurrentPoint

See GetCurrentPoint


NativePath

See GetNativePath
